Custom High Quality Building Material Stores China Speed ​​Reducer For Electric Motor

1.0 Pieces
MOQ
Custom High Quality Building Material Stores China Speed ​​Reducer For Electric Motor
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other
Customized support: OEM, ODM
Gearing Arrangement: Worm
Output Torque: UP TO 2320
Input Speed: 1400rpm or other
Output Speed: 14~186.7rpm
Ratio: 7.5,10,15,20,30,40,50,60
Color: RAL9006(grey) OR RAL5010(blue)
Label: As required
Housing Material: Aluminum&iron casting
Input Form: IEC flange for mounting motor
Mounted Form: flange-mounted mounting
Warranty: 1 year after vessel date
Output Form: Solid or Hollow shaft,flange output
Customization: Acceptable
Quality Control System: ISO9001:2008
証明: CE, ISO9001
基本情報
証明: CE, ISO9001
お支払配送条件
Packaging Details: Small size(RV25~RV90): standard export packing (carton and pallet); Big size(RV110~RV150): Honeycomb carton and pallet Big size(185): wooden case and pallet fumigated wood carton or non-wood packing material carton.
Supply Ability: 3000 Piece/Pieces per Month
製品の説明
Main Products
Product Description
Type

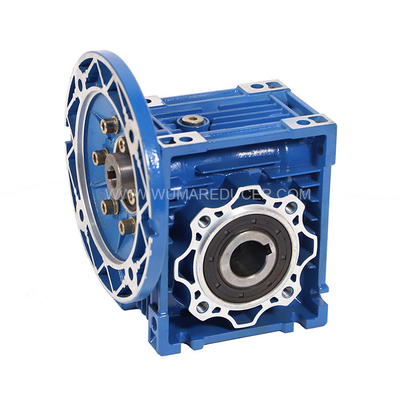

Worm Gear Speed Reducer/ gearbox
Model
WMRV 25/30/40/50/63/75/90/110/130/150/185
Ratio
7.5,10,15,20,25,30,40,50,60,80,100.
Color
Blue(RAL5010)/Silver grey (K9149) Or On Customer Request
Material
Aluminum alloy
Worm wheel: Aluminum Bronze or Zinc Bronze
Worm shaft: 20CrMn Ti
Output Shaft: steel-45#
Packing
Carton, Honey Comb Carton, Wooden Case with wooden pallet
Warranty
1 Year
Input Power
0.09kw,0.18kw,1.1KW,1.5KW,2.2KW,3KW,4KW,5.5KW,7.5KW,11Kw and so on.
Usages
Industrial Machine: Food Stuff, Ceramics, CHEMICAL, Packing, Dyeing,Wood working, Glass.
IEC Flange
IEC standard flange or on customer request
Lubricant
Synthetic oil or worm gear oil
>Click Here To Contact<
Product Advantages
Enterprise Strength
Certificate
Global Exhibition
Customer Comments
FAQ
1. How to choose a gearbox which meets our requirement?
You can refer to our catalogue to choose the gearbox or we can help to choose when you provide
the technical information of required output torque, output speed and motor parameter etc.

2. What information shall we give before placing a purchase order?
a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.

3. What industries are your gearboxes being used?
Our gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry,
escalator,automatic storage equipment, metallurgy, tabacco, environmental protection, logistics and etc.

4. Doyou sell motors?
We have stable motor suppliers who have been coperating with us for a long-time. They can provide motors
with high quality.
